Toggle Bolts
This is an example of a Mechanical Anchor. We carry a variety of conventional drilling and anchoring systems, each of which is different in its method of taking the applied load and transferring it through an anchor to the base material. Each type is designed for a specific application. Among these types are Cast-In-Place, Drilled In, Friction, Clamping, Compression, Undercut and Bonded Anchors.
Group codes Represented: TOGGLE
Part# Example: 4331R

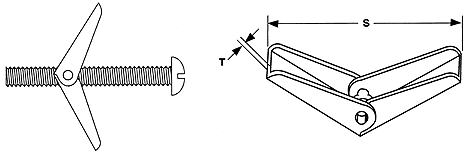

| Toggle Bolts - Toggle Wings
| |||||
| Thread Size or Bolt Diameter |
S
|
T
|
Recommended Hole Size
|
Proof Load, Lbs. (min)
| |
| Wing Spread (min)
|
Metal Thickness
|
Nom
|
Max
| ||
6-32 (1/8) |
0.75 |
.024 |
0.38 |
0.50 |
175 |
8-32 (5/32) |
1.00 |
.024 |
0.43 |
0.50 |
** |
12-24 (3/16) |
1.50 |
.028 |
0.50 |
0.62 |
350 |
1/4-20 (1/4) |
1.75 |
.035 |
0.62 |
0.75 |
600 |
5/16-18 (5/16) |
2.00 |
.042 |
0.88 |
1.00 |
900 |
3/8-16 (3/8) |
2.25 |
.047 |
0.88 |
1.00 |
1100 |
1/2-13 (1/2) |
3.50 |
.062 |
1.12 |
1.25 |
1500 |
** Industry standards do not list tensile values for this size |
|||||
