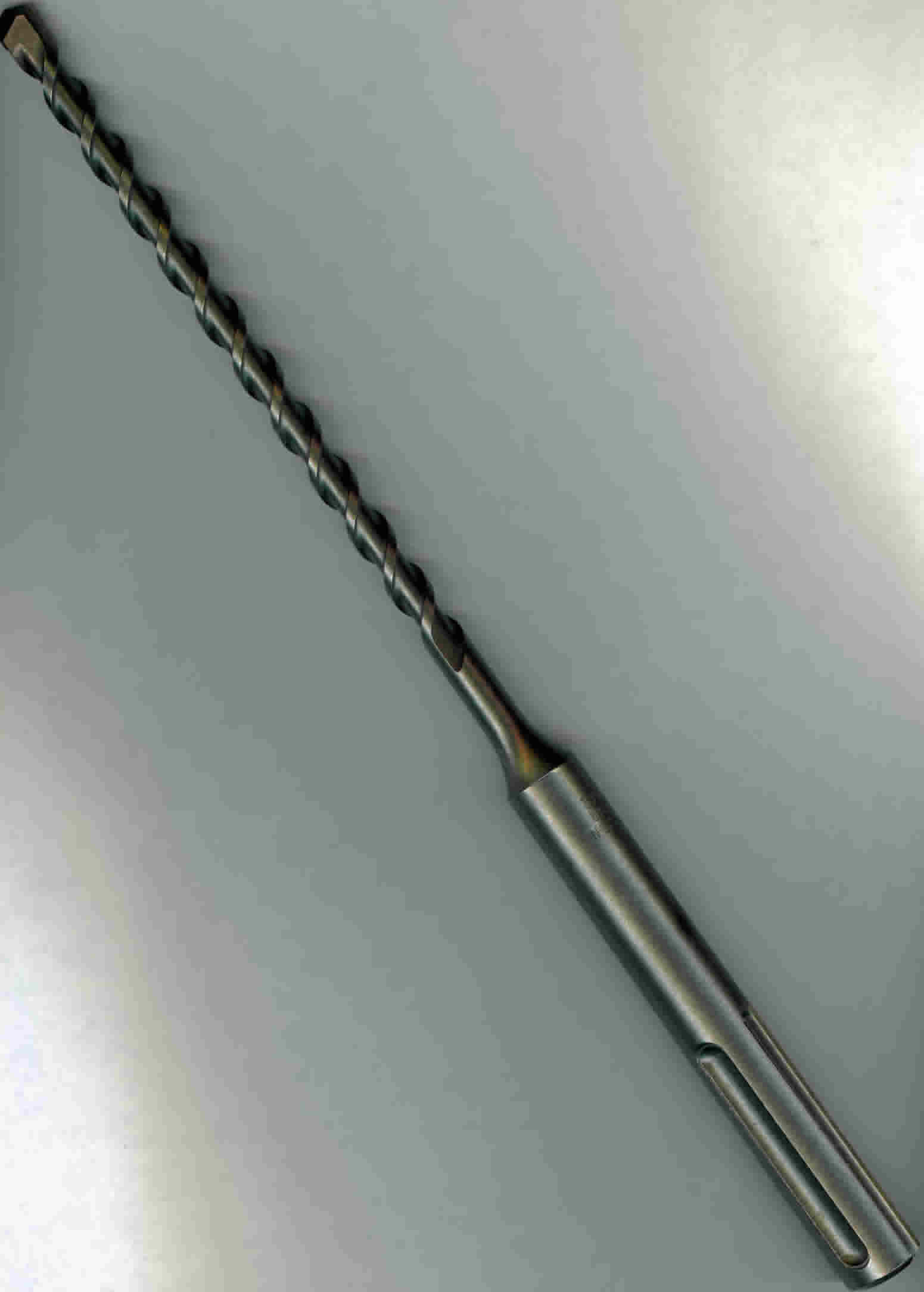

SDS Max Carbide Tipped Drill Bits

SDS Max Carbide Tipped

Mechanical and Adhesive masonry anchors require a pre-drilled hole. Our Masonry Drills are an excellent choice for preparing the anchoring hole.

Specifically for use in masonry drilling, these drills are made of high grade heat treated alloy tool steel for maximum life. Equipped with an SDS Max type chuck and meets ANSI standards. Cutting heads available in the QuatroT head which has four cutting faces which reduce vibration up to 60% and noise up to 30%. The QuatroT head also increases the bit's life by 30% while drilling speed is improved by 15%. It 'spots' holes more accurately and produces rounder holes than the standard cutting head. These bits can be used with most other manufacturers drills. A cross reference table is available.

Group codes Represented: SDSMAX

Masonry Drill damaged? Want to know the cause? See the Masonry Drill Bit Damage Table.

SDS Max Carbide Drill Bits w/Quatro Head
SDS Max carbide drill bit w/quatro Quatro
Part#
Dia. (In)
Size (In)
Usable Length (In)
8801R
1/2
*1/2 x 13
8
8802R
*1/2 x 21
16
8805R
9/16
*9/16 x 13
8
8806R
*9/16 x 21
16
8809R
5/8
5/8 x 13
8
8810R
5/8 x 21
16
8812R
5/8 x 36
31
8815R
11/16
11/16 x 21
16
8817R
3/4
3/4 x 13
8
8818R
3/4 x 21
16
8820R
3/4 x 36
31
8829R
7/8
7/8 x 13
8
8830R
7/8 x 21
16
8833R
1
1 x 13
8
8834R
1 x 21
16
8836R
1 x 36
31
8843R
1 1/8
1 1/8 x 13
8
8844R
1 1/8 x 21
16
8846R
1 1/4
1 1/4 x 15
10
8847R
1 1/4 x 23
18
8848R
1 1/4 x 36
31
8853R
1 3/8
1 3/8 x 23
18
8859R
1 1/2
1 1/2 x 23
Use Spline Carbide Drill Bits With...
Bosch®
Hilti®
(TE-TY Bits)
11216
11309
TE 52
TE 54
TE 60
TE 72
TE 74
TE 92
