Adjustable Clevis Yokes
Made from carbon steel, with a plain or zinc plated finish, these yokes are designed for use with a steel rod. Screw the rod into the tapping end of the clevis yoke for desired length of assembly. The length can be changed at any time by tightening or loosening the rod. Right or left hand threads are available in a fine threaded pattern, providing precision adjustment. Can also be special ordered in coarse thread. See Table for available sizes and reference information.
Group codes represented: ACY
Part# examples: 25UACY, 43SACY

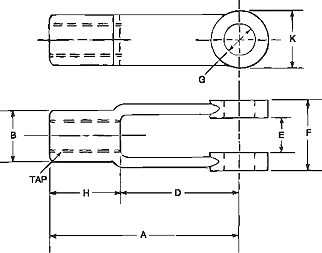

Dimensions in Inches |
|||||||||
A |
B |
X |
D |
E |
F |
G |
H |
K |
Tap Thread |
2 |
7/16 |
1 1/4 |
9/32 |
5/8 |
1/4 |
3/4 |
1/2 |
1/4 - 28 |
|
2 1/4 |
1/2 |
1 7/16 |
11/32 |
3/4 |
5/16 |
13/16 |
19/32 |
5/16 - 24 |
|
2 1/2 |
5/8 |
1 5/8 |
7/16 |
7/8 |
3/8 |
7/8 |
11/16 |
3/8 - 24 |
|
2 7/8 |
23/32 |
1 7/8 |
1/2 |
1 |
7/16 |
1 |
13/16 |
7/16 - 20 |
|
3 |
13/16 |
1 7/8 |
9/16 |
1 1/8 |
1/2 |
1 1/8 |
15/16 |
1/2 - 13 |
|
3 |
13/16 |
1 7/8 |
9/16 |
1 1/8 |
1/2 |
1 1/8 |
15/16 |
1/2 - 20 |
|
4 15/16 |
1 1/16 |
3 11/16 |
11/16 |
1 3/8 |
5/8 |
1 1/4 |
1 3/16 |
5/8 - 11 |
|
4 15/16 |
1 1/16 |
3 11/16 |
11/16 |
1 3/8 |
5/8 |
1 1/4 |
1 3/16 |
5/8 - 18 |
|
4 |
1 1/4 |
4 9/16 |
1 3/16 |
1 5/8 |
3/4 |
1 1/2 |
1 7/16 |
3/4 - 10 |
|
4 |
1 1/4 |
4 9/16 |
1 3/16 |
1 5/8 |
3/4 |
1 1/2 |
1 7/16 |
3/4 - 16 |
|
6 1/16 |
1 1/4 |
4 9/16 |
1 3/16 |
1 5/8 |
3/4 |
1 1/2 |
1 7/16 |
3/4 - 10 |
|
6 1/16 |
1 1/4 |
4 9/16 |
1 3/16 |
1 5/8 |
3/4 |
1 1/2 |
1 7/16 |
3/4 - 16 |
|
