Available in Grade 8 (150,000-170,000 PSI) and Grade 9 (180,00 PSI), these bolts are excellent for use on road graders, snow plows and similar heavy equipment. The dome style head provides extended bolt life. Stocked in diameters from 5/8" to 1 3/8".
Group codes
represented: SBB, SBB9
Part# examples: 125U50SBB, 100U300SBB9

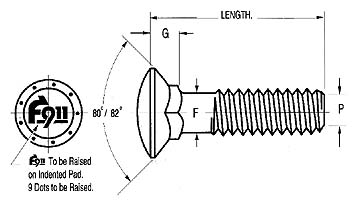

Plow Scraper Bolts |
|||||||||||
Bolt Dia. |
E |
G |
F |
S |
P |
R |
|||||
Head Diameter |
Head Height |
Body Diameter |
Square Width |
Point Diameter |
Fillet Radius |
||||||
Max |
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
Min |
||
5/8 |
1.044 |
1.013 |
0.536 |
0.486 |
0.625 |
0.611 |
0.640 |
0.625 |
0.539 |
0.496 |
0.078 |
3/4 |
1.200 |
1.169 |
0.581 |
0.541 |
0.750 |
0.735 |
0.765 |
0.750 |
0.656 |
0.609 |
0.109 |
7/8 |
1.409 |
1.396 |
0.741 |
0.678 |
0.875 |
0.859 |
0.906 |
0.875 |
0.770 |
0.721 |
0.125 |
1 |
1.628 |
1.597 |
0.805 |
0.742 |
1.000 |
0.983 |
1.031 |
1.000 |
0.880 |
0.829 |
|
1 1/4 |
1.755 |
1.745 |
1.100 |
1.050 |
1.250 |
1.133 |
1.280 |
1.250 |
1.130 |
1.056 |
|
