Drop Forged Steel Turnbuckles

Turned Wire Midget Turnbuckles

We stock all sizes and types of midget turnbuckles, with sand cast aluminum bodies, and electro galvanized steel hooks or eyes. Cadmium plated, cast malleable iron bodies with electro galvanized fittings are also available (only in the indicated sizes.)

Group codes represented: MT
Part# examples: 15MT, 21MT

Thread Dia.
Dimensions - Inches
Overall Length
Closed
Open
8-32
3 3/8
4 5/8
10-24
4
5 5/8
12-24
4 1/2
6 3/8
1/4-20
3 3/8
4 5/8
5/16-18
6 3/4
9 1/4
3/8-16
7 1/2
10 1/2
3/8-16
11 3/8
17 3/8

Drop Forged Steel Turnbuckles

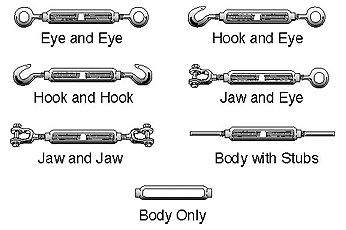

Manufactured from drop forged steel and hot dipped galvanized, these turnbuckles meet federal specification FF-T-791b Type 1, Form 1. United National coarse threads. Available in eye and eye, hook and eye, hook and hook, jaw and eye, jaw and jaw, stub and stub, and body only configurations. Stocked in sizes from 1/4" to 1 1/2".

Group codes represented: DFTB
Part# examples... 37600DFTBEE (eye and eye) 50600DFTBHE (hook and eye) 50200DFTBHH (hook and hook) 50900FTBJE (jaw and eye) 25400FTBJJ (jaw and jaw) 871200DFTBSS (body with stubs) 751800DFTBBO (body only)
