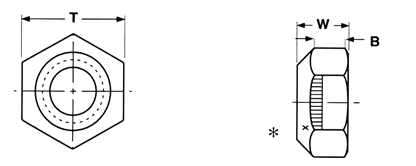

Top Lock Nuts Grade C
Designed to maintain clamp load in temperatures up to 450°F, the top
of these nuts are crimped to create a locking zone. They meet IFI standards
100, 101, 106, 107 and 108 and ANSI standards B18.16.1M, B18.16.2M and
B18.16.3M, and can be used with higher carbon and alloy steel bolts and
studs. Available in coarse and fine threads. Stocked in diameters from
1/4" to 1".
Group codes Represented: SLN
Top Lock Nuts Grade C |
Nominal Size in Inches |
T |
W |
B |
Width Across Flats |
Overall Thickness |
Hex Height |
Nom |
Max |
Min |
Max |
Min |
Min |
1/4 |
7/16 |
0.4385 |
0.428 |
0.226 |
0.212 |
0.145 |
5/16 |
1/2 |
0.5020 |
0.489 |
0.273 |
0.258 |
0.166 |
3/8 |
9/16 |
0.5645 |
0.551 |
0.337 |
0.320 |
0.198 |
7/16 |
11/16 |
0.6895 |
0.675 |
0.385 |
0.365 |
0.223 |
1/2 |
3/4 |
0.7520 |
0.736 |
0.448 |
0.427 |
0.262 |
9/16 |
7/8 |
0.8770 |
0.861 |
0.496 |
0.473 |
0.286 |
5/8 |
15/16 |
0.9395 |
0.922 |
0.559 |
0.535 |
0.329 |
3/4 |
1 1/8 |
1.1270 |
1.088 |
0.665 |
0.617 |
0.382 |
7/8 |
1 5/16 |
1.3145 |
1.269 |
0.776 |
0.724 |
0.450 |
1 |
1 1/2 |
1.5020 |
1.450 |
0.887 |
0.831 |
0.513 |

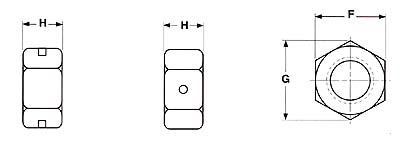

Reversible Lock Nuts
Also called center lock nuts, these nuts are ideal for production. They
lock to the mating part with deflected threads in the center of the nut.
This saves on screw length, because threads need not protrude from the
nut to lock securely. Use a grade A nut with a grade 2 bolt and a grade
B nut with a grade 5 bolt. Stocked in diameters from #6 to 1".
Group codes Represented: RLN
Part# Example: 62URLN, 31SRLN
Reversible Lock Nuts |
Nominal or Basic Major Diameter
of Thread |
F |
G |
H |
Width Across Flats |
Width Across Corners |
Thickness |
Basic |
Max |
Min |
Max |
Min |
Basic |
Max |
Min |
8 |
0.1640 |
11/32 |
0.344 |
0.332 |
0.397 |
0.378 |
3/16 |
0.193 |
0.178 |
10 |
0.1900 |
3/8 |
0.375 |
0.362 |
0.433 |
0.413 |
13/64 |
0.203 |
0.187 |
1/4 |
0.2500 |
7/16 |
0.438 |
0.428 |
0.505 |
0.488 |
1/32 |
0.226 |
0.212 |
5/16 |
0.3125 |
1/2 |
0.500 |
0.489 |
0.577 |
0.557 |
17/64 |
0.273 |
0.258 |
3/8 |
0.3750 |
9/16 |
0.562 |
0.551 |
0.650 |
0.628 |
21/64 |
0.337 |
0.320 |
7/16 |
0.4375 |
11/16 |
0.688 |
0.675 |
0.794 |
0.768 |
3/8 |
0.385 |
0.365 |
1/2 |
0.5000 |
3/4 |
0.750 |
0.736 |
0.866 |
0.840 |
7/16 |
0.448 |
0.427 |
9/16 |
0.5625 |
7/8 |
0.875 |
0.861 |
1.010 |
0.982 |
31/64 |
0.496 |
0.473 |
5/8 |
0.6250 |
15/16 |
0.938 |
0.922 |
1.083 |
1.051 |
35/64 |
0.559 |
0.535 |
3/4 |
0.7500 |
1 1/8 |
1.125 |
1.088 |
1.299 |
1.24 |
41/64 |
0.665 |
0.617 |
7/8 |
0.8750 |
1 5/16 |
1.312 |
1.269 |
1.516 |
1.447 |
3/4 |
0.776 |
0.724 |
1 |
1.0000 |
1 1/2 |
1.500 |
1.450 |
1.732 |
1.653 |
55/64 |
0.887 |
0.831 |

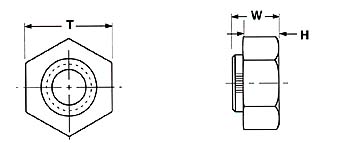

Collar Lock Nuts Grade C
Collar lock nuts are formed from medium carbon, heat-treated steel. Designed
to be used with a grade 8 bolt, they are stocked in both fine and coarse thread.
Zinc plating is standard, and other platings are available upon request. Sizes
for collar lock nuts range from 1 1/8" to 2 1/2". Thin collar lock nuts are
also available in sizes ranging from 1/4" to 1 1/2".
Collar Lock Nuts Grade C |
Nominal Size in Inches |
T |
W |
H |
Width Across Flats |
Overall Thickness |
Hex Height |
Max |
Min |
Max |
Min |
Max |
Min |
1 1/8 |
1.688 |
1.631 |
0.999 |
0.939 |
0.657 |
0.636 |
1 1/4 |
1.875 |
1.812 |
1.094 |
1.030 |
0.719 |
0.698 |
1 3/8 |
2.062 |
1.994 |
1.206 |
1.138 |
0.793 |
0.771 |
1 1/2 |
2.250 |
2.175 |
1.317 |
1.245 |
0.865 |
0.843 |
1 3/4 |
2.625 |
2.538 |
1.540 |
1.460 |
1.012 |
0.989 |
2 |
3.000 |
2.900 |
1.763 |
1.675 |
1.158 |
1.134 |

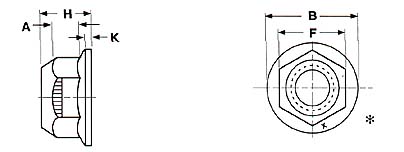

Flanged Top Lock Nuts Grade G
Formed from medium carbon, heat-treated steel, these nuts are designed for
use with a grade 8 bolts. They are stocked in both fine and coarse threads,
with standard cadmium plating and wax coating. Available in sizes from 1/4" to
1".
Flanged Top Lock Nuts Grade G |
Nominal Size in Inches |
F |
B |
H |
A |
K |
Width Across Flats |
Flange Diameter |
Overall Thickness |
Hex Height |
Flange Thickness |
Nom |
Max |
Min |
Max |
Max |
Min |
Min |
Min |
1/4 |
7/16 |
0.4385 |
0.428 |
0.56 |
0.300 |
0.265 |
0.14 |
0.04 |
5/16 |
1/2 |
0.5020 |
0.489 |
0.68 |
0.365 |
0.320 |
0.17 |
0.05 |
3/8 |
9/16 |
0.5645 |
0.551 |
0.81 |
0.425 |
0.404 |
0.20 |
0.06 |
7/16 |
11/16 |
0.6895 |
0.675 |
0.93 |
0.495 |
0.457 |
0.23 |
0.07 |
1/2 |
3/4 |
0.752 |
0.736 |
1.07 |
0.555 |
0.528 |
0.26 |
0.08 |
5/8 |
15/16 |
0.9395 |
0.922 |
1.33 |
0.69 |
0.646 |
0.32 |
0.10 |
3/4 |
1 1/8 |
1.127 |
1.088 |
1.585 |
0.825 |
0.742 |
0.38 |
0.11 |

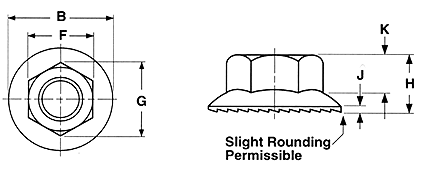

Spin Lock Nuts
A flange provides a large bearing surface and also acts as a washer for these
nuts. Locking action is provided by serrations on the flange bottom. They
are made of steel or stainless steel for excellent corrosion resistance. Stocked
in coarse and fine threads in sizes from #6 to 3/4".
Group codes Represented: SPLN, SSSPLN
Part# Example: 62USPLN, 31SSPLN, 37USSSPLN
Spin Lock Nuts |
Nominal Size or Basic Major Diameter
or Thread |
F |
G |
B |
H |
K |
J |
Width Across Flats |
Width Across Corners |
Flange Diameter |
Nut Thickness |
Wrench Length |
Flange Thickness |
6 |
0.1380 |
0.312 |
0.302 |
0.361 |
0.342 |
0.422 |
0.406 |
0.171 |
0.156 |
0.10 |
0.02 |
8 |
0.1640 |
0.344 |
0.334 |
0.397 |
0.381 |
0.469 |
0.452 |
0.203 |
0.187 |
0.13 |
10 |
0.1900 |
0.375 |
0.365 |
0.433 |
0.416 |
0.500 |
0.480 |
0.219 |
0.203 |
0.03 |
1/4 |
0.2500 |
0.438 |
0.428 |
0.505 |
0.488 |
0.594 |
0.574 |
0.236 |
0.222 |
0.14 |
0.04 |
5/16 |
0.3125 |
0.500 |
0.489 |
0.577 |
0.557 |
0.680 |
0.660 |
0.283 |
0.268 |
0.17 |
3/8 |
0.3750 |
0.562 |
0.551 |
0.650 |
0.628 |
0.750 |
0.728 |
0.347 |
0.330 |
0.23 |
7/16 |
0.4375 |
0.688 |
0.675 |
0.794 |
0.768 |
0.937 |
0.910 |
0.395 |
0.375 |
0.26 |
1/2 |
0.5000 |
0.750 |
0.736 |
0.866 |
0.840 |
1.031 |
1.000 |
0.458 |
0.437 |
0.31 |
0.05 |
5/8 |
0.6250 |
0.938 |
0.922 |
1.083 |
1.051 |
1.281 |
1.248 |
0.569 |
0.545 |
0.40 |
3/4 |
0.7500 |
1.125 |
0.1088 |
1.299 |
1.240 |
1.500 |
1.460 |
0.675 |
0.627 |
0.46 |
0.06 |
Nylon Insert Lock Nuts
These nuts feature an unthreaded molded nylon collar. Available in coarse
and fine thread, they are stocked in diameters from #2 to 4". Also available
in Grade 8 (High Tensile).
Group codes represented: NILN, NILN8
Part# examples: 25UNILN, 62SNILN, 87UNILNHVY, 100UNILN8
Nominal Size or Basic Thread
Diameter |
ESNA Part Numbers |
F |
H |
I |
G |
Steel, Zinc-plate |
Stainless |
Width Across Flats |
Thickness |
Side Height |
Width Across Corners |
Coarse |
Fine |
Coarse |
Fine |
Basic |
Max |
Min |
Max |
Min |
Ref |
Ref |
4 |
0.1120 |
21NM-40 |
-- |
79NM-40 |
-- |
1/4 |
0.251 |
0.243 |
0.153 |
0.133 |
0.081 |
0.268 |
5 |
0.1250 |
21NM-50 |
-- |
-- |
-- |
1/4 |
0.251 |
0.243 |
0.153 |
0.133 |
0.081 |
0.268 |
6 |
0.1380 |
21NM-62 |
-- |
79NM-62 |
-- |
5/16 |
0.313 |
0.305 |
1.880 |
0.168 |
0.103 |
0.339 |
8 |
0.1640 |
21NM-82 |
-- |
79NM-82 |
-- |
11/32 |
0.345 |
0.336 |
0.239 |
0.219 |
0.140 |
0.374 |
10 |
0.1900 |
21NM-04 |
21NM-02 |
79NM-04 |
79NM-02 |
3/8 |
0.376 |
0.367 |
0.249 |
0.229 |
0.140 |
0.410 |
1/4 |
0.2500 |
21NE-040 |
21NE-048 |
79NE-040 |
-- |
7/16 |
0.439 |
0.430 |
0.328 |
0.298 |
0.225 |
0.482 |
5/16 |
0.3125 |
21NE058 |
21NE-054 |
79NE-058 |
-- |
1/2 |
0.502 |
0.492 |
0.359 |
0.290 |
0.250 |
0.552 |
3/8 |
0.3750 |
21NE-066 |
21NE-064 |
79NE-066 |
-- |
9/16 |
0.564 |
0.553 |
0.468 |
0.438 |
0.335 |
0.622 |
7/16 |
0.4375 |
21NE-074 |
21NE-070 |
-- |
-- |
11/16 |
0.627 |
0.616 |
0.468 |
0.438 |
0.324 |
0.698 |
1/2 |
0.5000 |
21NM-083 |
21NE-080 |
79NE-083 |
-- |
3/4 |
0.752 |
0.741 |
0.609 |
0.579 |
0.464 |
0.837 |
9/16 |
0.5625 |
21NM-092 |
21NE-098 |
-- |
-- |
7/8 |
0.877 |
0.865 |
0.656 |
0.626 |
0.469 |
0.978 |
5/8 |
0.6250 |
21NE-101 |
21NE-108 |
79NE-108 |
-- |
15/16 |
0.940 |
0.928 |
0.765 |
0.735 |
0.593 |
1.051 |
3/4 |
0.7500 |
41NE-120 |
41NE-126 |
79NE-120 |
-- |
1 1/8 |
1.064 |
1.052 |
0.890 |
0.860 |
0.742 |
1.191 |
7/8 |
0.8750 |
41NE-149 |
41NE-144 |
-- |
-- |
1 5/16 |
1.252 |
1.239 |
0.999 |
0.969 |
0.790 |
1.403 |
1 |
1.0000 |
41NE-168 |
41NE-164 |
-- |
-- |
1 1/2 |
1.440 |
1.427 |
1.078 |
1.016 |
0.825 |
1.615 |
1 1/8 |
1.1250 |
41NE177 |
-- |
-- |
-- |
1 11/16 |
1.627 |
1.614 |
1.203 |
1.141 |
0.930 |
1.826 |
1 1/4 |
1.2500 |
41NE-197 |
41NE-202 |
-- |
-- |
1 7/8 |
1.815 |
1.801 |
1.422 |
1.360 |
1.125 |
2.038 |
1 1/2 |
1.5000 |
41NE-242 |
-- |
-- |
-- |
2 1/4 |
2.197 |
2.159 |
1.64 |
1.578 |
1.313 |
2.444 |
