This is an example of a Mechanical Anchor. We carry a variety of conventional drilling and anchoring systems, each of which is different in its method of taking the applied load and transferring it through an anchor to the base material. Each type is designed for a specific application. Among these types are Cast-In-Place, Drilled In, Friction, Clamping, Compression, Undercut and Bonded Anchors.
These hollow set drop-in anchors are designed for use in hollow base materials such as hollow concrete block, brick with weep holes, and hollow core pre-cast concrete plank, but it can also be used in solid base materials. They are designed to be used with a machine screw or bolt. Stocked in diameters from 1/4" to 1/2".
Group codes Represented: HSDROP
Part# Example: 9323R, 9320R

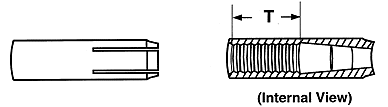

These all-steel, machine bolt anchors are available in carbon steel and two types of stainless steel. They can be used in solid concrete, hard stone, and solid block. A coil-thread version for forming applications is also available. Stocked in diameters from 1/4" to 3/4".
Group codes Represented: DROPIN
Part# Example: 6226R, 6308R
| Drop-In Anchors
| |||||
| Anchor Size / Bolt Size
|
Hole Diameter
|
T
|
Minimum Embedment
|
Ultimate Tensile (lbs.)
|
Ultimate Shear (lbs.)
|
| Thread Length
|
4000 psi. Concrete
| ||||
1/4 |
3/8 |
1/2 |
1 |
2067 |
1321 |
3/8 |
1/2 |
5/8 |
1 9/16 |
3995 |
3714 |
1/2 |
5/8 |
3/4 - 1 3/16 |
2 |
4110 |
5854 |
5/8 |
7/8 |
1 - 1 3/16 |
2 1/2 |
5750 |
8754 |
3/4 |
1 |
1 3/16 - 1 1/4 |
3 3/16 |
10807 |
11627 |
