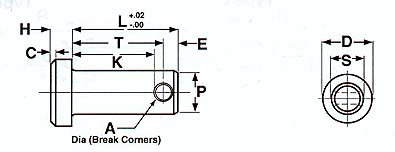

Nom-inal Size |
S |
D |
H |
C |
A |
P |
L |
T |
E |
K |
Recom-mended Cotter Pin Nominal Size |
||||||
Shank Dia. |
Head Dia. |
Head Height |
Head Cham-fer |
Hole Dia. |
Point Dia. |
Pin Length |
Head to Center of Hole |
End to Center Ref |
Head to Edge of Hole Ref |
||||||||
Max |
Min |
Max |
Min |
Max |
Min |
±0.01 |
Max |
Min |
Max |
Min |
Basic |
Max |
Min |
Basic |
Min |
||
3/16 |
0.186 |
0.181 |
0.320 |
0.300 |
0.070 |
0.050 |
0.020 |
0.088 |
0.073 |
0.150 |
0.140 |
0.580 |
0.504 |
0.484 |
0.090 |
0.440 |
1/16 |
1/4 |
0.248 |
0.243 |
0.380 |
0.360 |
0.100 |
0.080 |
0.030 |
0.088 |
0.073 |
0.210 |
0.200 |
0.770 |
0.692 |
0.672 |
0.090 |
0.628 |
1/16 |
5/16 |
0.311 |
0.306 |
0.440 |
0.42 |
0.100 |
0.080 |
0.030 |
0.119 |
0.104 |
0.260 |
0.25 |
0.94 |
0.832 |
0.812 |
0.12 |
0.752 |
3/32 |
3/8 |
0.373 |
0.368 |
0.510 |
0.490 |
0.130 |
0.110 |
0.030 |
0.119 |
0.104 |
0.330 |
0.320 |
1.060 |
0.958 |
0.938 |
0.120 |
0.878 |
3/32 |
7/16 |
0.436 |
0.431 |
0.570 |
0.550 |
0.160 |
0.140 |
0.040 |
0.119 |
0.104 |
0.390 |
0.380 |
1.190 |
1.082 |
1.062 |
0.120 |
1.002 |
3/32 |
1/2 |
0.496 |
0.491 |
0.630 |
0.610 |
0.160 |
0.140 |
0.040 |
0.151 |
0.136 |
0.440 |
0.430 |
1.360 |
1.223 |
1.203 |
0.150 |
1.127 |
1/8 |
5/8 |
0.621 |
0.616 |
0.820 |
0.800 |
0.210 |
0.190 |
0.060 |
0.151 |
0.136 |
0.560 |
0.550 |
1.610 |
1.473 |
1.453 |
0.150 |
1.377 |
1/8 |
3/4 |
0.746 |
0.741 |
0.940 |
0.920 |
0.260 |
0.240 |
0.070 |
0.182 |
0.167 |
0.680 |
0.670 |
1.910 |
1.739 |
1.719 |
0.180 |
1.628 |
5/32 |
7/8 |
0.871 |
0.866 |
1.040 |
1.020 |
0.320 |
0.300 |
0.090 |
0.182 |
0.167 |
0.800 |
0.790 |
2.160 |
1.989 |
1.969 |
0.180 |
1.878 |
5/32 |
1 |
0.996 |
0.991 |
1.190 |
1.170 |
0.350 |
0.330 |
0.100 |
1.820 |
0.167 |
0.930 |
0.920 |
2.410 |
2.239 |
2.219 |
0.180 |
2.128 |
5/32 |
Clevis Pins
Used for securing a clevis to a load, or to replace bolts and rivets, these pins
are made from carbon steel (grade depends on diameter), and are also available in
stainless steel.
Stocked in diameters from 3/16" to 1 1/2" and lengths from 1/2"
to 9". Assortments available.
Group codes Represented: CLP
Part# Example: 50125CLP
