Grommet Fasteners
Always match your screws to the job, considering both the finished result and the materials being used. Use round heads for work likely to be disassembled, and for fastening thin materials. Use flat heads when the screw head must be flush with the surface, or oval heads when countersinking is possible. If in doubt, use scrap stock to experiment with different types and sizes.
These Specialty Construction Screws have been specially designed for use in heavy construction. These screws have been modified from standard screws or manufactured as an assembly to serve a specific purpose.
Also known as grommet seals, these slotted hex nut machine screws are pre-assembled with a washer and a neoprene grommet with a 'molded-in' nut. Measured by the grommet diameter, they are available in stainless steel 3/8" and aluminum 1/4".
Fab-lok® Construction Screws
For use in original construction, maintenance, and repair of metal-clad buildings, these screws combine the simplicity and strength of both a rivet and a screw. These carbon steel or stainless steel screws are assembled to a slotted 'rivet' sleeve made of 5052-H32 aluminum with a 1/2" OD neoprene sealing washer. The assembly is designed for holding power in high wind areas, severe vibration and racking, and areas of expansion and contraction. Recommended for use on metal-clad buildings whenever these unusual conditions may cause a conventional threaded fastener to loosen and fail. Fab-Lok® is inserted into a 5/16" hole. It comes in 3 lengths depending on desired grip range. See table to choose correct Fab-Lok®.
Group codes Represented: FABLOK
Part# Example: See table.
Part#
|
Grip Range
|
FAS-10-4 |
0.062" to 0.250" |
FAS-10-8 |
0.250" to 0.500" |
FAS-10-12 |
0.500" to 0.750" |
Stitch Screws

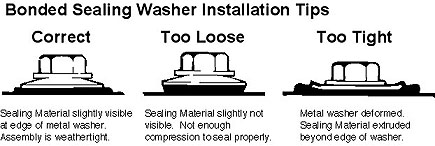

Made from zinc-plated carbon steel, these screws are available in hex washer head with a bonded sealing washer. They have all the benefits of self-drilling screws. The attached sealing washer makes them ideal for use in roofing, siding, or anywhere the drilled hole must be sealed when fastened.
Group codes Represented: HWDBSW
Part# Example: 14150HWDBSW
Self Drilling Screws
Made from zinc-plated carbon steel, these screws are available in hex washer head with a bonded sealing washer. They have all the benefits of self-drilling screws. The attached sealing washer makes them ideal for use in roofing, siding, or anywhere the drilled hole must be sealed when fastened.
Group codes Represented: HWDBSW
Part# Example: 14150HWDBSW
Hex Washer Head Sheet Metal Screws w/Bond Sealing Washers
Made from zinc plated carbon steel, these screws are assembled with a 20 gauge galvanized bonded sealing washer. Available points are shown in A, B and AB, in sizes #14 and #17 with lengths from 3/4" to 6".
Group codes Represented: HWDBSW
Part# Example: 14150HWDBSW
Woodchuck Screws
The #10 diameter of the hex washer head sheet metal screw w/bsw is specially named 'woodchuck screw' and is used primarily for steel roofing and siding. Available only in ‘A’ point. Lengths from 1" to 3".
Group codes Represented: HBSW
Part# Example: 10100HBSW
