Countersunk Finishing Washers
For use with an oval or flat head screw, the nickel-chrome finish of these washers provides a high luster and rust resistant coating. Available in regular and flanged styles; stainless steel and brass. Stocked in sizes from #6 to 1/4".
Group codes represented: CFW
Part# examples: 06CFW, 25CFW

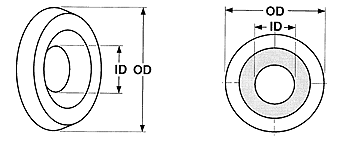

Screw Size |
Outside Diameter |
Inside Diameter |
Overall
Diameter |
|
Nominal |
Max |
Min |
||
6 |
15/32 |
0.200 |
0.170 |
5/64 |
8 |
17/32 |
0.210 |
0.180 |
7/64 |
10 |
19/32 |
0.265 |
0.235 |
7/64 |
12 |
21/32 |
0.289 |
0.259 |
1/8 |
1/4 |
25/32 |
0.335 |
0.305 |
5/32 |
