Sleeve Anchors

Sleeve Anchors

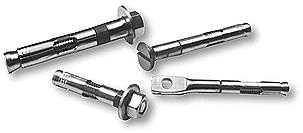

These pre-assembled single unit sleeve anchors are available in carbon steel and stainless steel, which can be used in concrete, block, brick, and stone. They are fully assembled and ready to use in several head styles. Available sizes depend on the desired head style. Please call for assistance.
Two styles are shown below; Flat Head and Hex Nut.

Group codes Represented: LOK/B
Part# Example: 7422R, 7424R

Sleeve Anchor, Flat Head
A x L
Hole Diameter
Maximum Thickness to be Anchored
Minimum Embedment
S
Required Torque to Set (Ft. Lbs.)
Tensile Strength (psi.)
Shear Strength (psi.)
Anchor Dia x Length
Diameter of Threaded Stud
3500 psi. Concrete Strength
1/4 x 1 1/8
1/4
1/2
1
3/16
5-8
1300
920
1/4 x 2
1
1/4 x 3
2
3/8 x 2 3/4
3/8
1 1/2
1 1/4
5/16
22-26
2400
2020
3/8 x 4
2 3/4
3/8 x 5
3 3/4
3/8 x 6
4 3/4

Sleeve Anchors w / Hex Nut
A x L
Hole Diameter
Maximum Thickness to be Anchored
Minimum Embedment
S
Required Torque to Set (Ft. Lbs.)
Tensile Strength (psi.)
Shear Strength (psi.)
Anchor Dia x Length
Diameter of Threaded Stud
3500 psi. Concrete Strength
5/16 x 1 1/2
5/16
1/2
1 1/8
1/4
18-22
1700
1600
5/16 x 2 1/2
1 1/2
3/8 x 1 7/8
3/8
5/8
1 1/4
5/16
22-26
2400
2020
3/8 x 3
1 3/4
1/2 x 2 1/4
1/2
3/4
1 1/2
3/8
34-38
4700
5760
1/2 x 3
1 1/4
1/2 x 4
2 1/2
1/2 x 6
4 1/2
5/8 x 2 1/4
5/8
1/4
2
1/2
52-75
5900
7880
5/8 x 3
1/2
5/8 x 4 1/4
2 1/3
5/8 x 6
4 1/2
3/4 x 2 1/2
3/4
1/2
2
5/8
90-110
9200
11620
3/4 x 4 1/4
2 1/4
3/4 x 6 1/4
4 1/4
